Abrasion, Wear and Blowout Protection Sleeves and Tubing for Wire, Cable and Hoses
375°F / 190°C Continuous Exposure: Higher Intermittent
ScuffSleeveä abrasion resistance sleeve and tubing for wires, cables and hoses that are moved regularly or flex in operation can be provided by using ScuffSleeveä. Available in 7 continuous sleeves (braided and woven) and 4 retrofit sleeves with hook and loop closure. These sleeve are available in bulk and shop spools of various standard lengths (see catalog pdf for information of the available lengths).
Available in standard sizes; larger or custom sizes can be easily fabricated. Helps to organize and bundle hoses and cables. Excellent abrasion, scuff and wear resistance.
Braided and Woven Sleeves:
- .02" filamant size nylon braided sleeve
- .05" filament size nylon braided sleeve
- Nylon 6 Standard Woven Sleeve
- Nylon 6 MIL Spec Woven Sleeve
- Nylon 6 MIL Spec Heavy Duty Woven Sleeve
- Nylon 6 Heavy Duty Hi-Flex .045" wall thickness woven sleeve
- Nylon 6 Heavy Duty Pro .08" wall thickness woven sleeve
Sleeve with Hook and Loop Closure:
- 1050 Dernier Nylon
- 1050 Dernier Heavy Duty Nylon with 1.5oz Urethane Coating
- 1000 Dernier HD Nylon with 7oz Urethane Coating
- 1000 Dernier with PVC coating
- Nylon with Neoprene coating weld shield
- Fiberglass with Neoprene coating weld shield

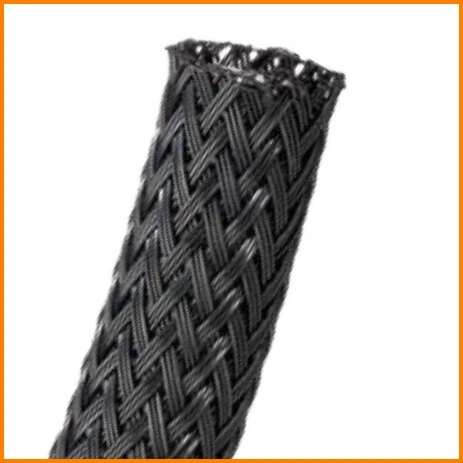

Abrasion & Wear Protection Nylon Braided Monofilament Sleeve
Two versions of the sleeve are available: .020" round filament (2500 abrasion cycle rated) and .050" flattened filament (4400 abrasion cycle rated).
Available in bulk spool lengths and smaller shop spool lengths.
Abrasion & Wear Protection Nylon Sleeve
The standard sleeve is fabricated from a tight and dense weave of nylon, with a high denier count of 1050. Often referred to as "ballistic Nylon".
Available in 75, 150 and 300 foot lengths.
Available in 75, 150 and 300 foot lengths.
Abrasion & Wear Protection Nylon Sleeve - MIL Spec
This sleeve is fabricated from a tight and dense weave of nylon 6-6, that conforms to ISO 6945 and MSHA for blowout protection.
Can be cut with heavy duty shears or heat knife. High wear resistant sleeve with 3500 abrasion cycle rating.
Abrasion & Wear Protection Nylon Sleeve - MIL Spec Heavy Duty
Similar to the above sleeve, this sleeve is fabricated from a tight and dense weave of nylon 6-6, and conforms to ISO 6945 and MSHA standards for blowout protection.
Can be cut with heavy duty shears or heat knife.
Can be cut with heavy duty shears or heat knife.

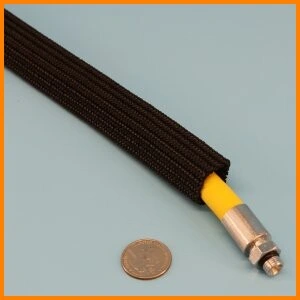

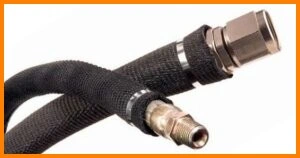

Abrasion & Wear Protection Nylon Sleeve - Heavy Duty Thick Wall
Thickest wall available - .045" or .080"
Can be cut with heavy duty shears or heat knife.
Can be cut with heavy duty shears or heat knife.
Abrasion Protection Sleeve with Hook & Loop Closure
Abrasion & Wear Protection Sleeves with Hook and Loop Closures - 4 versions
375°F / 190°C Continuous Exposure: Higher Intermittent
Custom fabricated sleeve with hook and loop closure, available in 4 versions:
Light Duty - 600 Denier Nylon with polymer coating
Meets MIL-C-83489, FED-STD-191A, MIL-STD-810F. Tested to ISO 6945
General Purpose - 1050 Denier "Ballistic" Nylon with 1.7 oz urethane water-proofing coating on one side
Tested to ISO 6945
Medium Duty - 1000 Denier HD Nylon (10.5oz) with 4 oz urethane water-proofing coating on one side
Meets MIL-C-83489, FED-STD-191A, MIL-STD-810F. Tested to ISO 6945
Heavy Duty - 1500 Denier XHD Nylon 40oz material with heavy polymer coating
Meets ISO 6945. Meets MSHA IC289
ScuffSleeveä abrasion, wear, cut and puncture resistant sleeve for hoses and cables that are moved regularly or flex in operation or in vulnerable applications such as mobile construction equipment can be provided protection by using ScuffSleeveä.
This sleeve is fabricated from a tight and dense weave of nylon 6-6, that conforms to ISO 6945 and MSHA for blowout protection.
Can be cut with heavy duty shears or heat knife.
Summary of all abrasion protection sleeves with hook/loop closure for non welding applications:

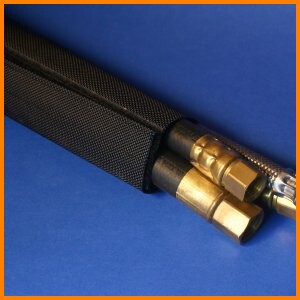

Welding & Abrasion Wear Protection Nylon with Neoprene Coating Sleeve
ScuffSleeveä Nylon with Neoprene coating sleeve with hook and loop closure protects cables and hoses from weld splatter and drag abrasion.
- 1000 Denier Cordura with high flame retardant neoprene coating.
- Meets MIL-C-20696E, Type 2 Class 1.
- Construction Equipment, Drill Rigs, Mobile Welding.
- Excellent UV protection: Meets EN13758-1.
- Meets ISO 6945 for drag abrasion.
- Non wicking, Excellent puncture and tear resistant.
Heavy Duty Welding & Abrasion Wear Protection Fiberglass with Neoprene Coating Sleeve
ScuffSleeveä Fiberglass with Neoprene coating sleeve with hook and loop closure protects cables and hoses from weld splatter and drag abrasion. The fiberglass base fabric allows for a higher level and more intense exposure to weld splatter and sparks than the nylon version of the sleeve is capable of withstanding.
- Fiberglass base fabric with high flame retardant neoprene coating.
- Excellent chemical resistance.
- Construction Equipment, Drill Rigs, Mobile Welding.
- Excellent UV protection: Meets EN13758-1.
- Non wicking, Excellent puncture and tear resistant.
- Best performance for vertical and inclines up to 15 degrees.
- For higher horizontal weld splatter capability use our silicone rubber coated sleeve.

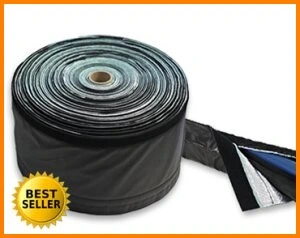

SPF Spray Foam Hose Protection Sleeve/Sock with Hook and Loop Closure
ScuffSleeveä abrasion resistance sleeve for SPF Spray Foam hoses provides abrasion and wear resistance to SPF hoses being dragged over construction sites and debris. An insulated version provides freeze protection for harsh winter use environments.
Fabricated from a heavy duty ballistic nylon with an easy to install and remove velcro hook and loop closure.

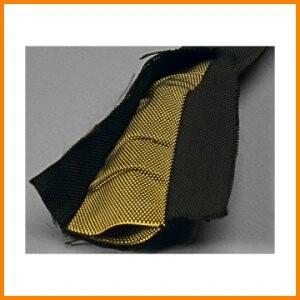

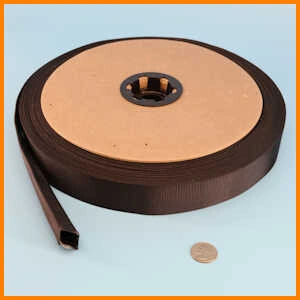

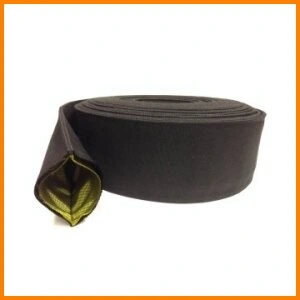

Blowout Abrasion Protection Nylon Sleeve Lining
SuperGuardä nylon abrasion resistance sleeve for blowout protection of hydraulic hoses.
Tested by the Fluid Power Institute; also meets ISO 3457, ISO 4413, MDG41. Exceeds EN982 ISO norm 833 EN414.
Available in 100 foot lengths.
