Products Selector > Firesleeve Group

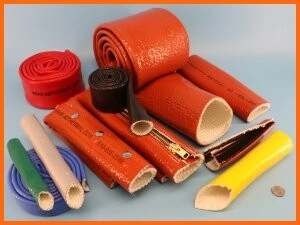

Firesleeve
High Temperature, Heat, Flame, Fire Resistant Silicone Rubber Coated Fiberglass Sleeve & Jacket for Wire, Cable, Hose and Tube Protection
500°F / 260°C Continuous Exposure / 1000°F / 537°C Peak Exposure
FlameShield™ Firesleeve (sometimes spelled fire sleeve or fire-sleeve) is the perfect sleeve and jacket choice for protecting industrial hydraulic hoses and lines, pneumatic lines, fuel & oil lines, brake lines, wires and cables from exposure to high temperature, heat, flame, fire and pyro exposure. The extra thick special formulation of silicone rubber on our firesleeve sheds molten metals, slag, welding splatter, electrical or grinding sparks and contamination. Firesleeve also provides protection from ozone, UV and abrasion.
The standard colour of firesleeve is red-oxide, but custom colours such as blue, grey, black, yellow and green are available; great for identifying hose and cable use when the sleeve is installed. Firesleeve is THE standard high-temperature and molten splash pyro protection jacket and sleeve for hose & cable.
Firesleeve is normally supplied in 50 & 100 foot lengths, but custom by-the-foot lengths are also available.
The industrial grade of Firesleeve is fabricated from a knitted fiberglass yarn substrate, while the aviation grade Firesleeve is fabricated from a thicker and denser braided fiberglass yarn (Aviation grade Firesleeve meets AS1072, allowing qualified hose assemblies to pass testing to AS1055D specifications). For further information on the Aerospace grade of Firesleeve Click Here.
Industrial Firesleeve is available in sizes ranging from 0.25" Inside Diameter through 5" I.D. in 27 size steps.
Industrial Firesleeve is available in sizes ranging from 0.25" Inside Diameter through 5" I.D. in 27 size steps.

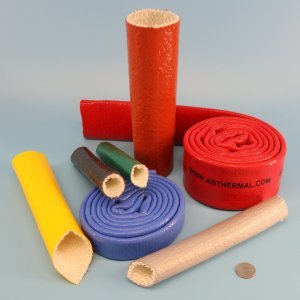

Firesleeve - Industrial Knit & Heavy Duty Braid - High Temperature, Heat, Flame & Fire Resistant Silicone Rubber Coated Fiberglass Sleeve & Jacket for Wire, Cable, Hose and Tubing Protection
500°F / 260°C Continuous Exposure / 1000°F / 537°C Peak Exposure
FlameShield™ Firesleeve (sometimes spelled fire sleeve or fire-sleeve) is the perfect sleeve and jacket choice for protecting industrial hydraulic hoses and lines, pneumatic lines, fuel & oil hose lines, brake lines, wires and cables from exposure to high temperature, heat, flame, fire and pyro exposure. The extra thick special formulation of silicone rubber on our firesleeve sheds molten metals, slag, welding splatter, electrical or grinding sparks and contamination. Firesleeve also provides protection from ozone, UV and abrasion.
The standard colour of is red-oxide, but custom colours such as blue, grey, black, yellow and green are available; great for identifying hose and cable use when the sleeve is installed. Firesleeve is THE standard high-temperature and molten splash pyro protection jacket and sleeve for hose & cable.
Normally supplied in 50 & 100 foot lengths, but custom by-the-foot lengths are also available.
The industrial grade of Firesleeve is fabricated from a knitted fiberglass yarn substrate, while the heavy duty industrial grade Firesleeve is fabricated from a thicker and denser braided fiberglass yarn.
Available in sizes ranging from 0.25" Inside Diameter through 5" I.D. in 27 size steps.
Available in sizes ranging from 0.25" Inside Diameter through 5" I.D. in 27 size steps.
Firesleeve - SAE AS1072E Aviation Grade for Wire, Cable and Hose Protection from high temperature, heat, flame & fire
Allows qualified hose assemblies to pass AS1055D
500°F / 260°C Continuous Exposure / 1000°F / 537°C Peak Exposure
FlameShield™ aviation / aerospace grade high temperature, heat, flame and pyro resistant firesleeve jacket is manufactured to SAE AS1072E standards so it can pass the fire testing standards of AS1055D; and the requirements of FAA TSO - C53a and TSO - C75.
It may be used for all fuel, oil, hydraulic, fire extinguisher and prop feathering lines. "Fire-proof" hose lines, as defined by the FAA, must withstand a direct flame for fifteen minutes under specified flow conditions without failure. Fire-resistant lines must withstand a 5 minute exposure under these conditions.
Fire-proof hose lines are obtained when the proper size Firesleeve is selected and properly assembled with appropriate clamps.
Available in sizes ranging from 0.25" Inside Diameter through 5" I.D. in 25 size steps.
SAE AS1072 Aviation Firesleeve Hose Protection

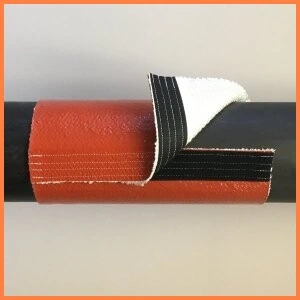

Firesleeve with VELCRO® Brand Hook & Loop Closure
High Temperature, Heat & Flame Resistant, Radiant Heat Reflective Protection for Wire, Cables, Hoses and Tubing with VELCRO Brand Hook and Loop Closure Fastener
500°F / 260°C Continuous Exposure / 1000°F / 537°C Peak Exposure
Firesleeve with VELCRO® Brand hook and loop closure is the perfect choice for protecting hydraulic hoses and lines, pneumatic lines, fuel & oil lines, brake lines, wires and cables from exposure to high temperature, heat, flame, fire, & pyro conditions including weld splatter, molten splash, slag and sparks. The extra thick formulation of silicone rubber dissipates hot sports quickly, preventing burn through. Also provides protection from ozone, UV and light duty abrasion.
Available in two styles: HiFlex and LoFlex. HiFlex is manufactured from braided Heavy Duty Firesleeve, and LoFlex is manufactured from woven base 98oz/sq-ft fabric.
The HiFlex silicone coating and underlying braid fiberglass is flexible, allowing for easy placement on curved lines and for installations requiring high flexibility and motion. The LoFlex is a stiffer material, providing slightly more protection than the HiFlex product due to the silicone having a high durometer.
The standard colour is red-oxide. For the HiFlex version, black is also available. Custom colors are also available.
For both versions, a hook & loop is added to result in a firesleeve than can be easily installed on long hose or cable runs, or on hose and cables that cannot be detached from their installation. This retrofit solution allows the sleeve to be added, or replaced conveniently - this makes for an easy to use Electic Arc Furnace cable cover (EAF cable cover).
For both versions, a hook & loop is added to result in a firesleeve than can be easily installed on long hose or cable runs, or on hose and cables that cannot be detached from their installation. This retrofit solution allows the sleeve to be added, or replaced conveniently - this makes for an easy to use Electic Arc Furnace cable cover (EAF cable cover).
The smallest standard I.D. is 1/2". For HiFlex version, 5" is the largest ID possible with a continuous material with no radial splices. For sizes larger than 5", lengths of firesleeve are overlaped and spliced together in order to reult in the larger ID size when closed. Using this technique, IDs of almost limitless size are possible.
For the LoFlex version, 12" ID is the largest size possible in a continuous non-spliced material piece. Larger IDs are possible by fabricating multiple fabric widths together, with an almost limitless ID size being the result.
Firesleeve with Metal Snap Closure
High Temperature, Heat & Flame Resistant, Radiant Heat Reflective Protection for Wire, Cables, Hoses and Tubing with Metal Snap Closure
500°F / 260°C Continuous Exposure / 1000°F / 537°C Peak Exposure
SnapSleeveTM high temperature, heat, flame, pyro and fire resistant sleeve and jacket provides molten splash & weld splatter protection to wires, cables, hoses, tubes and pipes. SnapSleeveä provides a field installable protection sleeve utilizing metal snaps instead of hook and loop closure strips.
Although sleeve with hook and loop closure provides excellent protection in most harsh environments, only SnapSleeve can endure the most demanding of liquid metal splash and heavy weld splatter. This sleeve also provides energy savings and personnel protection.
Snaps are typically installed at 4 or 6 inch spacing along the sleeve. Additional snaps may easily be field installed to allow for unique bends or extra closure protection.
Available in sizes from 1" through 12" ID. Other larger sizes available.
Firesleeve with metal snap closure

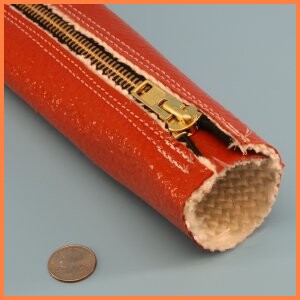

Firesleeve with Zipper Closure
High Temperature, Heat & Flame Resistant Protection for Wire, Cables, Hoses and Tubing with Zipper Closure
500°F / 260°C Continuous Exposure / 1000°F / 537°C Peak Exposure
ZipSleeveTM high temperature, heat resistant and thermal insulation sleeve provides molten splash & weld splatter protection to wires, cables, hoses, tubes and pipes. ZipSleeveä provides a field installable protection sleeve utilizing a nomex zipper with brass teeth instead of Velcro closure strips.
Although Velcro sleeve such as our Shield VC provides excellent protection in most harsh environments, only ZipSleeve can endure the most demanding of liquid metal splash and heavy weld splatter. This sleeve also provides energy savings and personnel protection.
Available in standard sizes from 1" through 12" ID; custom sizes are available.
The standard maximum length of a zipper is 50 feet / 15 metres. Longer zippers up to 150 feet / 45 metres are possible, but will incur minimum order quantities.

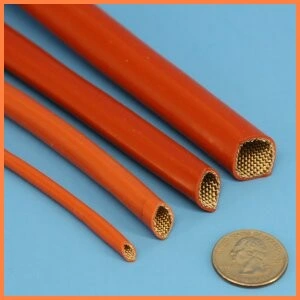

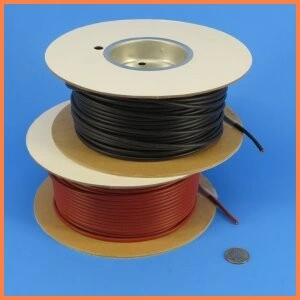

Silicone Rubber Coated Fiberglass Sleeve for AWG sized Wire Protection
High Temperature, Heat & Flame Resistant Protection for Wire, Cables, Hoses and Tubing
464°F / 240°C Continuous Exposure: Higher Intermittent
FlameShieldä thin-wall high temperature, heat, flame and fire resistant firesleeve is the perfect choice for protecting small diameter wires and cables from exposure to high temperature and environmental conditions. The thin-wall fiberglass substrate and smooth silicone rubber on this firesleeve sheds light molten metal splash, slag, welding splatter, electrical or grinding sparks, solder drips and contamination. Also provides protection from ozone, UV and light abrasion. This product is UL/CSA approved and used on a wide variety of equipment such as fixtures, appliances and motors for wiring protection.
This sleeve is available only in oxide-red and black. Supplied in spool lengths; some sizes may be available in by-the-foot lengths - please contact our order desk to enquire.
Heavy wall sleeve is only available in oxide-red color:
Download Catalog Page
Firesleeve Accessories: End Cut Liquid Dip & Paste Sealant, Clamps & Tools,
End Wrap Tape
Protecting and sealing the cut ends of firesleeve from wicking liquids and contaminants
SleeveSealä
SleeveSealä high temperature sealant paste is our special formulation of high-temperature silicone rubber, packaged into a convenient 3oz squeeze tube or 10.3oz caulking tube, for use on mechanical joints, and as a potting compound, anywhere a high-temperature adhesive/sealant is required. 2 grades: +260°C and +300°C continuous.
Seal-Dipä is a special formulation of our high-temperature silicone rubber which is a liquid until exposed to air, when it cures rapidly into a flexible protective covering of silicone rubber. Perfect for protecting the ends of sleeve and tape from fraying, or from contamination, and from wicking liquids such as water, oil, hydraulic fluid, etc. Usually used as a dip for sleeve and rope. Non corrosive and meets Mil-A-46146 as per NAVAIR 01-1A-20.
SleeveSeal End Wrap Tape
This high temperature, heat and flame resistant silicone rubber end wrap tape is the perfect choice for sealing the ends of firesleeve, thereby preventing the firesleeve from wicking liquids such as water, oil or hydraulic fluid. This silicone tape can also be used to help secure other types of fiberglass and silica tapes over wires, cables, hoses, tube and pipe..
The tape has a blue stripe running down the centre as an aid to performing a standard 50% overlap when wrapping the tape around Sleeve, hoses and cables.
End-wrap silicone rubber tape is self bonding to itself and other silicone rubber sleeve and tape, providing a waterproof/air tight end to the installation of firesleeve sleeve over hoses and cables.
End-wrap silicone rubber tape is self bonding to itself and other silicone rubber sleeve and tape, providing a waterproof/air tight end to the installation of firesleeve sleeve over hoses and cables.
This tape is available in 1" and 1 1/2" widths (25 & 37mm), with 36 feet of tape per roll. The tape is mounted on a backing film for easy unwinding.
Also available meeting specification A-A-59163 and Mil-I-46852.
 |
 |
 |
